Hướng dẫn cài đặt PowerDNS

#technical #blog-post

Overall architecture

Cài đặt PDNS Authoritative

Quy hoạch domain

server domain
10.10.40.100 ns1.dns.stg
10.10.40.101 ns2.dns.stg
10.10.40.102 ns3.dns.stg
10.10.40.100 ns1.dns.stg
10.10.40.101 ns2.dns.stg
10.10.40.102 ns3.dns.stg

Cài đặt MySQL sử dụng làm backend cho PDNS

 CREATE TABLE domains (
  id                    INT AUTO_INCREMENT,
  name                  VARCHAR(255) NOT NULL,
  master                VARCHAR(128) DEFAULT NULL,
  last_check            INT DEFAULT NULL,
  type                  VARCHAR(8) NOT NULL,
  notified_serial       INT UNSIGNED DEFAULT NULL,
  account               VARCHAR(40) CHARACTER SET 'utf8' DEFAULT NULL,
  options               VARCHAR(64000) DEFAULT NULL,
  catalog               VARCHAR(255) DEFAULT NULL,
  PRIMARY KEY (id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE UNIQUE INDEX name_index ON domains(name);
CREATE INDEX catalog_idx ON domains(catalog);


CREATE TABLE records (
  id                    BIGINT AUTO_INCREMENT,
  domain_id             INT DEFAULT NULL,
  name                  VARCHAR(255) DEFAULT NULL,
  type                  VARCHAR(10) DEFAULT NULL,
  content               VARCHAR(64000) DEFAULT NULL,
  ttl                   INT DEFAULT NULL,
  prio                  INT DEFAULT NULL,
  disabled              TINYINT(1) DEFAULT 0,
  ordername             VARCHAR(255) BINARY DEFAULT NULL,
  auth                  TINYINT(1) DEFAULT 1,
  PRIMARY KEY (id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE INDEX nametype_index ON records(name,type);
CREATE INDEX domain_id ON records(domain_id);
CREATE INDEX ordername ON records (ordername);


CREATE TABLE supermasters (
  ip                    VARCHAR(64) NOT NULL,
  nameserver            VARCHAR(255) NOT NULL,
  account               VARCHAR(40) CHARACTER SET 'utf8' NOT NULL,
  PRIMARY KEY (ip, nameserver)
) Engine=InnoDB CHARACTER SET 'latin1';


CREATE TABLE comments (
  id                    INT AUTO_INCREMENT,
  domain_id             INT NOT NULL,
  name                  VARCHAR(255) NOT NULL,
  type                  VARCHAR(10) NOT NULL,
  modified_at           INT NOT NULL,
  account               VARCHAR(40) CHARACTER SET 'utf8' DEFAULT NULL,
  comment               TEXT CHARACTER SET 'utf8' NOT NULL,
  PRIMARY KEY (id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE INDEX comments_name_type_idx ON comments (name, type);
CREATE INDEX comments_order_idx ON comments (domain_id, modified_at);


CREATE TABLE domainmetadata (
  id                    INT AUTO_INCREMENT,
  domain_id             INT NOT NULL,
  kind                  VARCHAR(32),
  content               TEXT,
  PRIMARY KEY (id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE INDEX domainmetadata_idx ON domainmetadata (domain_id, kind);


CREATE TABLE cryptokeys (
  id                    INT AUTO_INCREMENT,
  domain_id             INT NOT NULL,
  flags                 INT NOT NULL,
  active                BOOL,
  published             BOOL DEFAULT 1,
  content               TEXT,
  PRIMARY KEY(id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE INDEX domainidindex ON cryptokeys(domain_id);


CREATE TABLE tsigkeys (
  id                    INT AUTO_INCREMENT,
  name                  VARCHAR(255),
  algorithm             VARCHAR(50),
  secret                VARCHAR(255),
  PRIMARY KEY (id)
) Engine=InnoDB CHARACTER SET 'latin1';

CREATE UNIQUE INDEX namealgoindex ON tsigkeys(name, algorithm);

Trên 10.10.40.100

create database dns1;
CREATE USER 'pdns'@'10.10.40.101' IDENTIFIED WITH mysql_native_password BY 'Nm2zdZy46X2i44RN';
GRANT USAGE ON *.* TO `pdns`@`10.10.40.101`;
grant all privileges on dns1.* to 'pdns'@'10.10.40.101';
flush privileges;

mysql -u root -p dns1 < pdns.sql

Trên 10.10.40.101

create database dns2;
CREATE USER 'pdns'@'10.10.40.101' IDENTIFIED WITH mysql_native_password BY 'Nm2zdZy46X2i44RN';
GRANT USAGE ON *.* TO `pdns`@`10.10.40.101`;
grant all privileges on dns2.* to 'pdns'@'10.10.40.101';
flush privileges;

mysql -u root -p dns2 < pdns.sql

insert into supermasters values ('10.10.40.100','ns2.dns.stg','');

Trên 10.10.40.102

create database dns3;
CREATE USER 'pdns'@'10.10.40.102' IDENTIFIED WITH mysql_native_password BY 'Nm2zdZy46X2i44RN';
GRANT USAGE ON *.* TO `pdns`@`10.10.40.102`;
grant all privileges on dns3.* to 'pdns'@'10.10.40.102';
flush privileges;

mysql -u root -p dns3 < pdns.sql

insert into supermasters values ('10.10.40.100','ns3.dns.stg','');

Cài đặt PDNS

yum -y update
yum install -y epel-release yum-plugin-priorities
curl -o /etc/yum.repos.d/powerdns-auth-47.repo https://repo.powerdns.com/repo-files/el-auth-47.repo
yum install -y pdns pdns-backend-mysql mysql-devel

pdns_server --version

Nov 15 11:34:18 PowerDNS Authoritative Server 4.7.4 (C) 2001-2022 PowerDNS.COM BV
Nov 15 11:34:18 Using 64-bits mode. Built using gcc 8.3.1 20190311 (Red Hat 8.3.1-3) on Apr 17 2023 07:39:17 by root@89eec22969dd.
Nov 15 11:34:18 PowerDNS comes with ABSOLUTELY NO WARRANTY. This is free software, and you are welcome to redistribute it according to the terms of the GPL version 2.
Nov 15 11:34:18 Features: libcrypto-ecdsa libgeoip libmaxminddb lua lua-records PKCS#11 protobuf sodium curl DoT
Nov 15 11:34:18 Built-in modules:
Nov 15 11:34:18 Configured with: " '--build=x86_64-redhat-linux-gnu' '--host=x86_64-redhat-linux-gnu'

Tiếp theo, config pdns trên các server

Master

Chỉnh sửa config của pdns tại /etc/pdns/pdns.conf

# Allow zone transfers from specified IP addresses
allow-axfr-ips=127.0.0.0/8,::1, 10.10.40.101/32, 10.10.40.102/32
# Notify these IP addresses when the zone is updated
also-notify=10.10.40.101,10.10.40.102
# Set the local port for incoming DNS queries
local-port=53
# Enable PowerDNS API
api=yes
# API key for authentication
api-key=citadel-ambiguous-reapply-applause-monsoon
# Specify the directory where PowerDNS looks for its configuration files
config-dir=/etc/pdns
# Run PowerDNS as a daemon in the background
daemon=yes
# Enable or disable zone transfers
disable-axfr=no
# Enable or disable syslog logging
disable-syslog=no
# Enable the guardian process
guardian=yes
# Launch with the gmysql backend
launch=gmysql
# MySQL database settings for gmysql backend
gmysql-host=10.10.40.100
gmysql-port=3306
gmysql-user=pdns
gmysql-password=Nm2zdZy46X2i44RN
gmysql-dbname=dns1
gmysql-dnssec=yes
# Specify local IP addresses to bind to
local-address=10.10.40.100,10.10.40.111
# Log DNS details and queries
log-dns-details=yes
log-dns-queries=yes
# Log timestamps with log entries
log-timestamp=yes
# Set the logging facility and log level
logging-facility=6
loglevel=9
# Configure PowerDNS as a master server
master=yes
# Time-to-live for negative DNS query cache
negquery-cache-ttl=60
# Allow binding to non-local addresses
non-local-bind=yes
# Specify local IP addresses for queries
query-local-address=10.10.40.100,10.10.40.111
# Enable or disable query logging
query-logging=no
# Set the server ID
server-id=ns1
# Set the group and user ID for the PowerDNS process
setgid=pdns
setuid=pdns
# Enable the webserver
webserver=yes
# Webserver address and allowed IP addresses
webserver-address=127.0.0.1
webserver-allow-from=127.0.0.1,::1,10.10.40.100

Slave

Tương tự như master, thay đỏi địa chỉ trên mỗi slave cho phù hợp

# Specify IP addresses allowed to notify this server
allow-notify-from=10.10.40.100/32
# Enable automatic provisioning of secondary zones
autosecondary=yes
# Specify the directory where PowerDNS looks for its configuration files
config-dir=/etc/pdns
# Run PowerDNS as a daemon in the background
daemon=yes
# Enable or disable syslog logging
disable-syslog=no
# Enable the guardian process
guardian=yes
# Set the local port for incoming DNS queries
local-port=53
# Launch with the gmysql backend
launch=gmysql
# MySQL database settings for gmysql backend
gmysql-host=10.10.40.101
gmysql-port=3306
gmysql-user=pdns
gmysql-password=Nm2zdZy46X2i44RN
gmysql-dbname=dns2
gmysql-dnssec=yes
# Specify local IP addresses to bind to
local-address=10.10.40.101,10.10.40.112
# Log DNS details and queries
log-dns-details=yes
log-dns-queries=yes
# Log timestamps with log entries
log-timestamp=yes
# Set the logging facility and log level
logging-facility=6
loglevel=9
# Time-to-live for negative DNS query cache
negquery-cache-ttl=60
# Allow binding to non-local addresses
non-local-bind=yes
# Specify local IP addresses for queries
query-local-address=10.10.40.101,10.10.40.112
# Enable or disable query logging
query-logging=yes
# Specify that this server is a secondary server
secondary=yes
# Set the server ID
server-id=ns2
# Set the group and user ID for the PowerDNS process
setgid=pdns
setuid=pdns
# Specify that this is a slave server
slave=yes
# Time interval for checking for zone updates (in seconds)
slave-cycle-interval=60
# Enable the webserver
webserver=yes
# Webserver address
webserver-address=127.0.0.1

systemctl enable pdns
systemctl start pdns

● pdns.service - PowerDNS Authoritative Server
   Loaded: loaded (/usr/lib/systemd/system/pdns.service; disabled; vendor preset: disabled)
   Active: active (running) since T3 2023-11-14 15:35:35 +07; 23h ago
     Docs: man:pdns_server(1)
           man:pdns_control(1)
           https://doc.powerdns.com
 Main PID: 29723 (pdns_server)
   CGroup: /system.slice/pdns.service
           └─29723 /usr/sbin/pdns_server --socket-dir=/run/pdns --guardian=no --daemon=no --disable-syslog --log-timestamp=no --write-pid=no

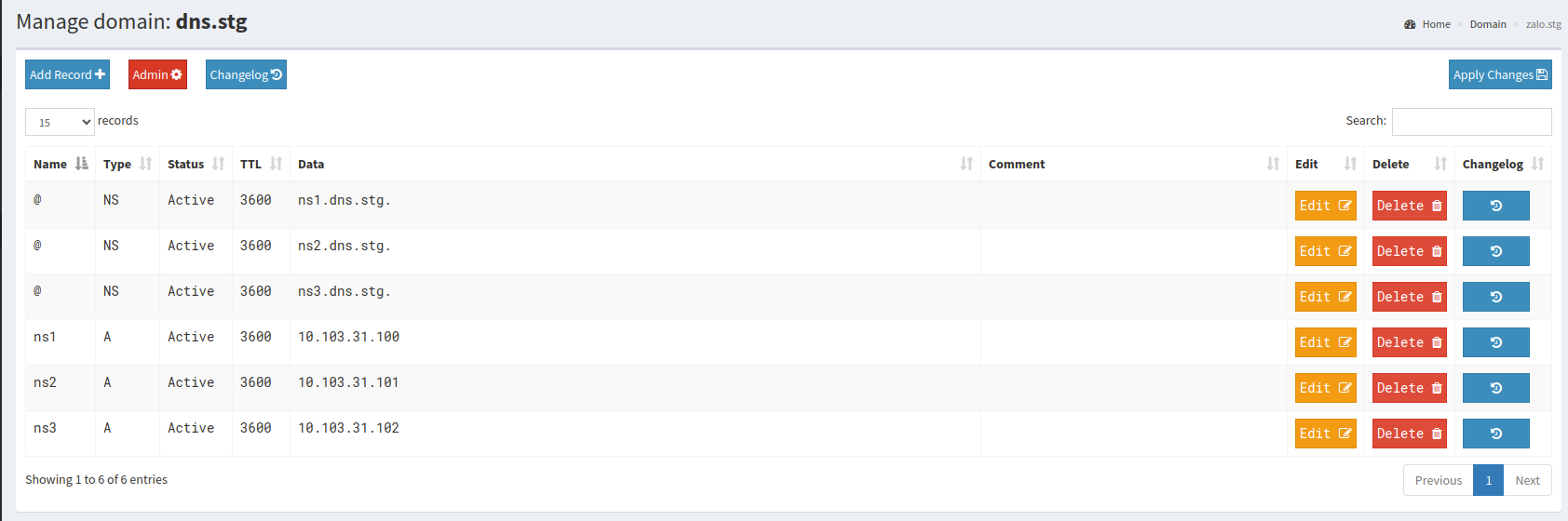

Cài đặt PowerDNS-Admin

import os
import urllib.parse
basedir = os.path.abspath(os.path.dirname(__file__))

### BASIC APP CONFIG
SALT = '$2b$12$yLUMTIfl21FKJQpTkRQXCu'
SECRET_KEY = 'AWrjcUZbeofCcTUju4nzW62rprFDcCKn'
BIND_ADDRESS = '10.10.40.100'
PORT = 9191
HSTS_ENABLED = False
OFFLINE_MODE = False
FILESYSTEM_SESSIONS_ENABLED = False
SESSION_COOKIE_SAMESITE = 'Lax'
CSRF_COOKIE_HTTPONLY = True

### DATABASE CONFIG
SQLA_DB_USER = 'pdnsadminuser'
SQLA_DB_PASSWORD = 'jGabSjQUdMjHQ8RD6b'
SQLA_DB_HOST = '10.10.40.100'
SQLA_DB_NAME = 'powerdnsadmin'
SQLALCHEMY_TRACK_MODIFICATIONS = True

### DATABASE - MySQL
SQLALCHEMY_DATABASE_URI = 'mysql://{}:{}@{}/{}'.format(
    urllib.parse.quote_plus(SQLA_DB_USER),
    urllib.parse.quote_plus(SQLA_DB_PASSWORD),
    SQLA_DB_HOST,
    SQLA_DB_NAME
)

### DATABASE - SQLite
# SQLALCHEMY_DATABASE_URI = 'sqlite:///' + os.path.join(basedir, 'pdns.db')

# SAML Authnetication
SAML_ENABLED = False
SAML_ASSERTION_ENCRYPTED = True

supervisorctl reread
supervisorctl update
supervisorctl start powerdnsadmin

supervisorctl status powerdnsadmin

powerdnsadmin                    RUNNING   pid 45197, uptime 5 days, 3:44:25

Cài đặt PDNS Recursor

# Read allowed IP addresses from a file
allow-from-file=/etc/pdns-recursor/allow
# Enable or disable syslog logging
disable-syslog=no
# Log DNSSEC validation failures as warnings
dnssec-log-bogus=yes
# Specify a file with forward zones
forward-zones-file=/etc/pdns-recursor/forward-zones
# Specify local IP addresses to bind to
local-address=127.0.0.1,10.10.40.103,10.10.40.116,10.10.40.117
# Set the local port for incoming DNS queries
local-port=53
# Set the logging facility and log level
logging-facility=6
loglevel=6
# Maximum number of cache entries
max-cache-entries=1000000
# Maximum Time-to-Live (TTL) for cached items
max-cache-ttl=3600
# Time-to-Live (TTL) for negative cache entries
max-negative-ttl=0
# Allow binding to non-local addresses
non-local-bind=yes
# Enable or disable quiet mode
quiet=no
# Suffix for security poll queries
security-poll-suffix=
# Set the group and user ID for the PowerDNS recursor process
setgid=pdns-recursor
setuid=pdns-recursor
# Number of worker threads
threads=8

dns.stg	=10.10.40.111, 10.10.40.112, 10.10.40.102
+.=8.8.8.8, 1.1.1.1

127.0.0.0/8
10.0.0.0/8
192.168.0.0/16
